Océ Plotwave

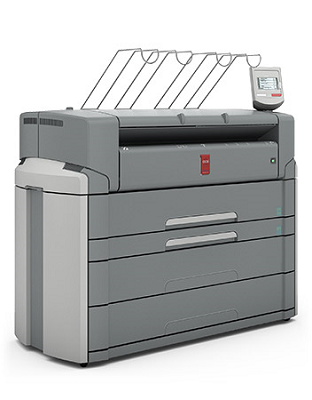

The Océ Plotwave 750


Exceed the limits of your current large format document capabilities with the Océ PlotWave 750 system. Gain the edge for your business. Print more flexibly. Protect vital data more securely. Produce documents faster and manage print jobs more easily. The Océ PlotWave 750 system helps you meet the complex document challenges faced in a departmental print setting or a productive, central print room environment. Let the Océ PlotWave 750 system take your document capabilities to new heights.


Description    Productive large format black & white print/copy/scan system with color scanning
Imaging Technology    Electrophotography (LED), organic photoconductor (OPC), closed toner system, Océ Radiant Fusing technology
Toner / Ink Type    Océ black toner: 2 bottles per carton, 500 grams of toner per bottle
Speed    Black & white: 9 D/min (4.7 A0/min)
Resolution    600 × 1200 dpi
Configuration    Printer or multi functional with choice of Océ TC4 or Océ TDS610* scanners (support available December 2013)
Size print engine
(W x D x H)    57" × 32" × 58" (1430 × 905 × 1470 mm)
Weight main engine    639 lbs. (290 kg)
Certifications    EPA ENERGY STAR®, TüV GS, CETECOM, CE, UL, cUL, CB, FCC Class B, RoHS
Paper Rolls    Default: 2 rolls, expandable to a maximum of 6 rolls and two cut sheet trays
Maximum Paper Capacity    Up to 650 feet (198 m) per roll, maximum 6 rolls
Paper Weight    20 - 24 lb. (75 - 100 g/m 2 )
Roll Width    11" - 36" (297 - 914 mm)
Output Delivery    Compact and ergonomic top delivery tray supporting up to 100 E-size collated plots (other options available)
Media Type    Paper: plain paper, recycled paper, colored paper and transparencies. Film: Film and Vellum.
Description    Océ Power Logic® controller based on Windows® Embedded Standard 7
Processor    Intel Core 2 i5-520M @ 2.39GHz
Memory    Standard 2 gb
Hard Disk    2 × 500 gb
Interface    Ethernet 100 Mbits/s, 1 Gbit/s
Page Description Language    TIFF, JPEG, HP-GL, HP-GL/2, DWF, C4, Calcomp 906/907/951, CALS, NIRS, ASCII
Security    E-shredding, IPSec, HTTPS, extended security protection for administrator, audit logging
Options    Adobe® PostScript® 3/PDF file interpreter
Printer License    Océ Base license - includes all licenses for professional workflow requirements such as scan-to-file capability (color, grayscale, and black & white) and provides features for enhanced productivity like faster scanning speed as well as instant viewing of scanned files.
Hardware    Océ TC4 wide format color scanner, Océ TDS610 productive wide format scanner, integrated folder, Océ Delivery Tray, Océ Double Decker Pro Stacker, roll loaders to reduce back strain while loading heavy media in the lower drawers
Software    Adobe® PostScript 3®/PDF, Océ Repro Desk Suite for printing to multiple wide format devices, viewing and cost tracking
