Océ Plotwave

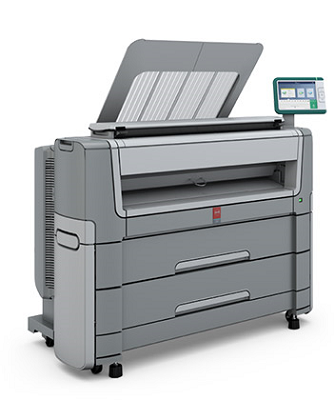

The Océ Plotwave 550


Cloud integrated, advanced large format technical document management
Print, copy, and scan with the Océ PlotWave 550 printing system. Now in a single-footprint configuration, print or copy in high quality monochrome, or scan in color or monochrome, and take control of your project workflows with the power you need to print faster, share faster, and finish projects faster.



  • Click Here For More Details

    Description    Black & white all-in-one large format print/copy/scan system with color scanner
    Imaging Technology    Electrophotography (LED), organic photoconductor (OPC), clean closed toner system, Océ Radiant Fusing technology
    Toner    Océ black toner: 450 grams per bottle
    Speed    Black & White: 10ppm (D-size/A1)
    Resolution    600 x 1200 dpi
    Configuration    Multifunctional or printer only
    Warm-Up Time    Less than 1 second, thanks to Océ Radiant Fusing Technology
    First Print Time    16 seconds (D-size/A1) From sleep mode: 30 seconds (D-size/A1)
    Size Main Engine
    (W x D x H)    60.1" x 31.6" x 58.9" (1,527 x 803 x 1,495 mm) including top delivery tray
    Weight Main Engine    585 lbs. (265 kg)
    Certifications    CE, TUV GS, CETECOM, C-UL-US, Energy Star 2.0, FEMP
    Paper Rolls    2 or 4 rolls
    Maximum Paper Capacity    Up to 2,600 ft., 650 ft. on a roll
    (up to 800 m, 200 m per roll)
    Paper Weight    18 - 28 lb. Bond; 60 - 110 g/m 2
    Roll Width    11" - 36" (297 - 914 mm)
    Output Length    16.5" - 577.4 ft. (419 mm - 176 m)
    Output Delivery    Top delivery tray with air separation technology; up to 100 E/A0-size plots collated
    Media Type    Paper: Plain paper bond, Transparencies, Recycled paper, Colored bond, Vellum, Film: Polyester
    Description    Océ PowerM® controller with Windows® Embedded Standard 7; 500GB hard disc / 4 GB memory
    Client Operating System Support    Océ print driver for Windows® 7 (32 & 64-bit)/Windows Vista® (32 & 64-bit)/Windows XP®/Windows Server 2003®/ Windows Terminal Server®, Citrix® Metaframe and Presentation Server Adobe® Postscript® 3™sup> driver for Windows XP® and Server 2003®, Mac® OS v9, OSX (only Adobe® Postscript® 3/ PDF driver supported)
    Processor    Dual-Core G540 @ 2.50GH
    Memory    4 gb DDR3
    Hard Disk    500 gb, 7200 rpm
    Interface    Ethernet 100 Mbits/s, 1 Gbit/s
    Page Description Language    TIFF, JPEG, HP-GL, HP-GL/2, DWF, Calcomp 906/907/951, CALS, NIRS, NIFF, ASCII, C4, PS/PDF(optional)
    Security    E-shredding, IPSec, HTTPS, extended security protection for administrator, audit logging
    Options    Adobe PostScript 3/PDF file interpreter
    Cloud    WebDAV
    Description    Contact Image Sensor (CIS) with Océ Color Image Logic™ technology
    Scan Resolution    600 x 600 dpi
    Scan Speed    Copying: Up to 31.8 ft./min. (9.7 m/min.) B/W Scanning: Up to 47.9 ft./min. (14.6 m/min.) Color Scanning: Up to 15.7 ft./min. (4.8 m/min.)
    Scan Format    TIFF, PDF, PDF/A, JPEG, CALS, multi-page PDF, multi-page PDF/A and multi-page TIFF
    Scan Destination    Local USB flash drive, FTP, SMB, Controller, mobile device via Océ Mobile WebTools
    Original Width    8.2" - 36" (208 - 914 mm)
    Original Length    8.2" - 52.5 ft. (208 mm - 16 m)
    Original Thickness    Maximum 0.03" (0.8 mm) non-rigid documents
    Zoom    Scale to standard format Custom: 10 - 1,000%
    Preset Modes    Lines & text, Lines & text draft, Folded lines & text, Photo, Colored, Dark original, Blueprint
    Size Scanner (W x D x H)    43" x 12" x 5.5" (1,097 x 308 x 140 mm)
    Weight Scanner    46 lbs. (24.5 kg)
    Description    Concurrent print, copy and scan of single documents or sets
    Printer drivers    Microsoft® certified Windows® driver 2.0, Adobe® Postscript 3™ driver
    Job submission software    USB flash drive, Océ Mobile WebTools for iOS, Android, Symbian and BlackBerry®, Océ Publisher Mobile for iPad, Océ Publisher Express, Océ Publisher Select software
    Job management    Personalized Smart Inbox with history, Manage queue, Océ Express WebTools, Secure controller access, remote shutdown and restart
    Accounting    Option: Océ Account Center
    Hardware    Océ Scanner Express II, second roll unit, front original tray, Océ Estefold 2400 fanfold, Océ 4312 Estefold fullfold with Extended Stacker, Removable Hard Drive Kit with optional additional Hard Drive, and Rear Delivery Tray
    Software    Océ View Station, Océ Client Tools™ software, Adobe® Postscript 3/PDF file interpreter, Océ Repro Desk® Studio, Océ Repro Desk Web Client, Océ Repro Desk Professional
