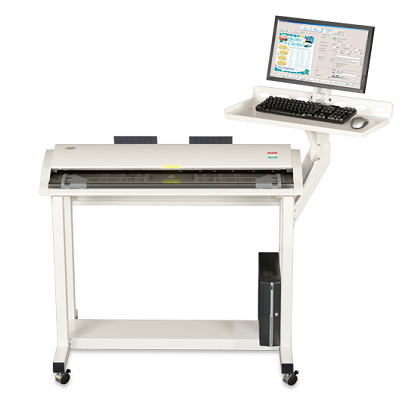

The KIP 720


The KIP 720 large format scanner is a 24-bit, 36" / 914 mm wide full-color image capture system perfect for processing photographs, complex maps, and AEC/CAD drawings.

The KIP 720 CIS (Contact Image Sensor) technology scanning method enables high-resolution, high-speed image capture with energy saving operation in a compact design. The KIP 720 delivers color & monochrome scan & copy functionality with world-class scanning speeds and unbeatable image accuracy.

Face-up document scanning

True 600x600dpi optical resolution

CIS scanning technology - high definition scans

No folded optics - No warm-up time

Energy Star Qualified



Scanner Type C.I.S. with KIP RTT Technology

Scan Resolution 600 x 600 dpi optical resolution

Scan Speed Up to 8 ips / 203 mm per second (B&W) Up to 2.6 ips / 66 mm per second (Color)

Scan Format TIFF, Multipage TIFF, PDF, PDF-A, Multipage PDF, DWF, Multipage DWF, JPEG, CALS

Scan Destination Local USB (removable media), unlimited IPS mailboxes (local), unlimited FTP, unlimited SMB

Original Size Width 11" - 36" / 279 mm - 914 mm

Original Thickness Up to 1.6mm thick

Original Handling Integrated document returns (standard). Output rack for up to 10 originals (optional)

Interface USB 2.0

Dimensions 43" (w) x 16" (d) x 6.7" (h) / 1,092 mm (w) x 406 mm (d) x 170 mm (h)

Weight 53 lb. / 25 kg

Electrical 100-240 V AC 50/60 Hz

Power Consumption <50 W
