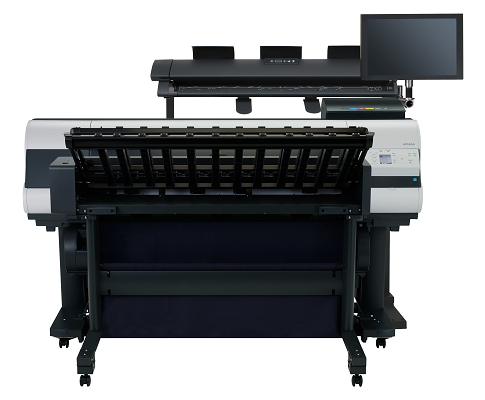

The Canon imagePROGRAF 850 MFP
Overview
The Canon imagePROGRAF iPF850 MFP M40 44" large format imaging system is designed to meet the speed and precision requirements for AEC, CAD, MCAD and ECAD, with outstanding ease-of-operation to handle all-purpose, office projects. The iPF850 MFP M40 provides a fast and effective system for copying, archiving and distributing maps, drawings, renderings, site and facilities management plans, design and layout proofs, posters and more.
This Multi-Function Product's advanced M40 scanner adds versatility to the product capabilities with the ability to scan documents up to 2mm thick. The scanner has the ability to scan documents up to 315" in length as a PDF or JPEG file, and up to 590" in length as a TIFF file. The SmartWorks MFP software simplifies the entire Scan-to-Print, File, and Share process for users of all experience levels. The iPF850 MFP M40 also offers Canon's Direct Print & Share software1, a cloud-portal software solution that enables the viewing, sharing and printing of files from virtually anywhere in the world, a Shortcut Print button for drag and drop printing through hot folder technology, and is compatible with almost any cloud server that's WebDAV compliant. The solution is also equipped for mobile printing through use of the imagePROGRAF Print Utility2 app for iPad®, available as a free download on the App Stores℠.
With true 600dpi optical resolution, CIS scanning technology for incredible line definition and accuracy, and room for documents up to 41" wide (40" image width) by any length, the iPF850 MFP M40 is a versatile imaging solution. And with dynamic preview and a large, simple-to-use touch-screen interface, one-click scanning/copying has never been easier and comes standard with the ability to scan to PDF, JPEG and TIFF file formats. The iPF850 MFP M40 provides the versatility and flexibility needed to be used in a wide variety of industries and applications, all in one captivating package.
Specs
Printer Type 5-Color 44-inch Printer
Scanner Type: Contact Image Sensor (CIS) technology
Scan Accuracy: +/- 0.1%
Scan Speed: 13 ips monochrome, 3 ips color
Nozzle Pitch 1,200 dpi
Non-firing nozzle detection and compensation
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
OS Compatibility Windows® (XP 32bit/Vista/7/8/8.1)
Macintosh® (OSX 10.6.8 - 10.10)
Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TX
Scanner
USB 3.0 and USB 2.0 High-Speed
Ink Droplet Size 4 picoliter
Ink Capacity 330ml, 700ml per color2
Ink Droplet Size Dye/Pigment Reactive Ink
Color Set Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black
Hard Drive 320GB
Paper Sizes Scanner:
Width: 42 inch document width (40 inch image width)
Length: 315" (JPG or PDF), 590" (TIFF)
Media Width Cut Sheet - 8"- 44"
Roll Feed - 10” - 44”
Media Thickness 0.07-0.8mm
Scanner
0.079in (2mm)
Maximum Roll Print Length Roll Feed - 59'
Cut Sheet - 63"
Maximum Media Roll Diameter 5.9" or less
Borderless Printing Width 10", 14", 17", 24", 36", 42" (N/A when stacker is in use)
Paper Feed Method Roll Feed: Dual Roll, Front loading, Front output
Cut Sheet: One sheet, Front loading, Front output
Languages GARO (Canon Proprietary) HP-GL/2, HP-RTL
Noise Level Approx Operation: 60 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: Approx. 7.5 Bels or less
Physical Dimensions 75"(W)x 52"(D)x 45"(H)
Box Dimensions
Main unit (with a printer stand, and palette included): 82"(W)x42"(D)x48"(H)
Stacker, Lower roll unit, Lower rail (palette included): 82"(W)x42"(D)x40"(H)
Weight Approximately 470 lbs
Box Weight
Main unit (with a printer stand, and palette included): Approximately 384 lbs
Stacker, Lower roll unit, Lower rail (palette included): Approximately 309 lbs
Power Source AC-100-240V (50-60Hz)
Power Consumption Maximum: 200W or less
Standby 5W or less
Power Off: .5W or less (Compliant with Executive Order)
Operating Environment Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
Computer
OEM
Operating System: Windows 7
Monitor: Flat Panel Touch-Screen Display
User-replaceable items Print Head: PF-04
Maintenance Cartridge: MC-09, MC-10
Ink Tanks:
PFI-307 (330ml: C, M, Y, BK, MBK)
PFI-707 (700ml: C, M, Y, BK, MBK)
Software Included SmartWorks MFP, Direct Print & Share
Direct Print Built In Card Reader Functions
Software Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility4, PosterArtist Lite (PC Only), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD
Print Resolution 2,400 x 1,200 dpi (Max)
Scanner
Optical Resolutions: 1200dpi (Adjustable from 100 dpi to 2,400 dpi)
Max. Resolutions: 9600dpi interpolated
