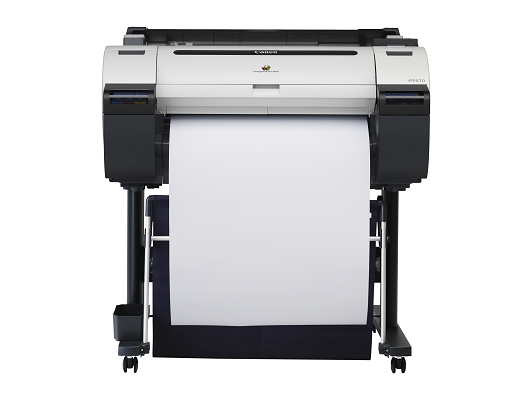

The Canon imagePROGRAF 670
Overview
The Canon imagePROGRAF iPF670 24-inch large format printer is an affordable model for entry-level users. The iPF670 is the printer for your poster and signage needs. The optimal color profile and latest magenta ink will create the vivid and impactful image you need. Canon understands speed is important, that is why the iPF670 printer is capable of producing an A1 (23.4” x 33.1”) print in up to 28 seconds6 using Economy Mode! The included Sub-ink tank system allows you to use all of the ink in the tank before replacing it, as well as replacing an empty ink tanks on-the-fly without stopping a job mid-print and sacrifice print quality. The iPF670 printer is available as a desktop model or with stand and basket.
Specs
Printer Type 5-Color 24-inch Printer
Number of Nozzles Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch 1,200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to) 2,400 x 1,200 dpi (Max)
OS Compatibility Windows® (XP 32bit/Vista/7/8)
Macintosh® (OSX 10.6.8-10.9X)
Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size 4 picoliter
Ink Capacity 130ml per color2
Ink Droplet Size Dye/Pigment Reactive Ink
Color Set Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black
Buffer Ram 256MB
Media Width Cut Sheet: 8"- 24" (203.2mm - 610mm)
Roll Feed: 10" - 24" (254mm - 610mm)
Media Thickness 0.07-0.8mm (2.8-31.4mil)
Maximum Roll Print Length Roll Feed: 59' (18 meters) 3
Cut Sheet: 63" (1.6 meters)
Maximum Media Roll Diameter 5.9" (150mm)
Borderless Printing Width 10", B4, A3, 14", A2, 17", B2 (20.28"/515 mm), A1 (23.38"/594mm), 24"
Paper Feed Method Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front output
Languages GARO (Canon Proprietary), HP-GL/2, HP RTL
Noise Level Approx Operation: 47 dB (A)
Standby: 35 dB (A) or less
Acoustic Power: Approx. 6.5 Bels
Physical Dimensions 42" (H) x 39" (W) x 34" (D) (When basket is open)
42” (H) x 39” (W) x 28” (D) (When basket is closed)
20" (H) x 39" (W) x 27" (D) (Without stand)
Weight Approximately 116 lb. with stand
Approximately 95 lb. without stand
Box Dimensions/ Weight: 42" (H) x 44" (W) x 33"(D), 196 lb. with stand
30" (H) x 44" (W) x 33"(D), 158 lb. without stand
Power Source AC-100-240V (50-60Hz)
Power Consumption Maximum: 140W or less
Standby 5W or less
Power Off: .5W or less (Compliant with Executive Order)
Operating Environment Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items Print Head: PF-04
Maintenance Cartridge: MC-10
Ink Tanks: PFI-107 (130ml: C, M, Y, BK, MBK)
Software Included Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility^, PosterArtist Lite (PC Only), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD
