Océ Scanners

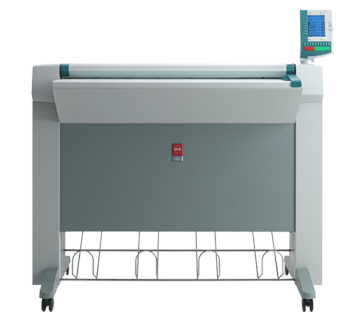

The Océ TC4 Scanner

Overview

The new Océ TC4 wide format scanner takes the wait out of high-quality, maximum-information-retention scans. Guaranteed! No warm up time and combined with speeds up to 16.4 linear feet per minute put you on the productivity fast track.

Specs


Scan Technology         Océ Direct Scan
(single camera, single mirror, innovative light source)
Océ Color Image Logic technology
(intelligent image processing for color and monochrome)
Two Configurations         Océ TC4 for original thickness up to .12 in. (3 mm)
Océ TC4XT for original thickness up to .60 in. (15 mm)
Speed         B/W 16.4 ft./min. (5 m/min.)
Color 13 ft./min. (4 m/min.)
Resolution         600 dpi
Scan Accuracy         0.1% ± 1 pixel
1:1 Accuracy         <0.3% for E size (A0)
Warm-Up Time         None, instant behavior
Original Sizes         Image width: 8–36 in. (200–914 mm)
Original width: 8–40 in. (200–1016 mm)
Original length: 8 in.–49 ft. (200 mm–15 m)
Original Sizes         Automatic width detection
Measured width displayed on the user interface
User Interface         Intuitive and multi-language support
Five user-defined scan-to-file templates
Select scan destination from user interface
Data Formats         TIFF (uncompressed, PackBits, G3, G4, LZW), PDF (uncompressed, FLATE, LZW, G4), CALS, JPEG
Océ Power Logic® Controller         Memory: 1 gb
Hard disk capacity: 250 gb
Océ Power Logic® Controller         View scans at the scanner (optional monitor required)
Manage scan jobs
Automatically generates unique file name
Ten programmable destinations, selectable from user interface
Scan destinations:
- to web using FTP
- to network directory
- to controller
Océ Power Logic® Controller         View system status
Customize default settings
Password-protected user rights
Dimensions         51" w × 26" d × 41" h
(1300 mm w × 650 mm d × 1050 mm h)
Weight         154.3 lb. (70 kg)
Electrical         100-230 V, 50-60 Hz
Optional         Océ Account Center (accounting application)
