Océ Plotwave

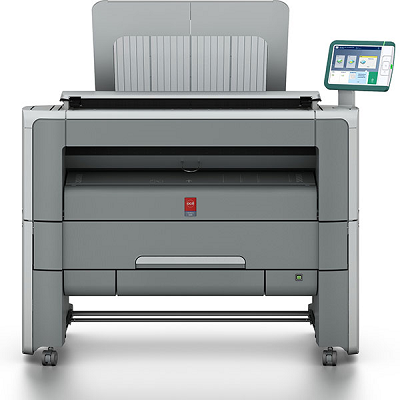

The Océ Plotwave 345-365

Overview

The Océ ClearConnect color touchscreen interface supports multi-touch gestures for intuitive control. It's ideal for decentralized printing environments featuring workgroups of CAD professionals who require both productivity and ease-of-use. Walk-up users will appreciate the ability to access technical document files from their cloud of choice, preview files on the color screen, and print - all from the printer's touchscreen.

1MIN TRAILER

17MIN DEMO VIDEO

  • MORE INFO & SPECS

    TECHNOLOGY
    Description    Black & white all-in-one large format print/copy/scan system with color scanner
    Imaging Technology    Electrophotography (LED), organic photoconductor (OPC), clean closed toner system, Océ Radiant Fusing technology
    Toner    Océ black toner: 400 grams per bottle
    Speed    Black & White:
    Océ PlotWave 340: 4ppm (D-size/A1)
    Océ PlotWave 360: 6ppm (D-size/A1)
    Resolution    600 × 1200 dpi

    GENERAL
    Configuration    Multifunctional or printer only
    Warm-Up Time    Less than 1 second, thanks to Océ Radiant Fusing Technology
    First Print Time    31 seconds (D-size/A1)
    From sleep mode: 40 seconds (D-size/A1)
    Size Main Engine
    (W x D x H)    60.6" × 31.5" × 58.9" (1,527 × 800 × 1,495 mm)
    including top delivery tray
    Weight Main Engine    397 lbs. (180 kg)
    Certifications    EPA ENERGY STAR®, FEMP, TüV GS, CETECOM, CE, UL, cUL, CB, FCC Class A, RoHS

    PAPER HANDLING
    Paper Rolls    1 or 2 rolls
    Maximum Paper Capacity    Up to 1,300 ft., 650 ft. on a roll (up to 400 m, 200 m per roll)
    Paper Weight    18 - 28 lb. Bond; 60 - 110 g/m 2
    Roll Width    11" - 36" (297 - 914 mm)
    Output Length    16.5" - 577.4 ft. (419 mm - 176 m)
    Output Delivery    Top delivery tray with air separation technology; up to 50 E/A0-size plots collated
    Media Type    Paper: Plain paper, Transparencies, Recycled paper, Colored paper

    Film: Polyester, Antistatic, Contrast

    Controller
    Description    Océ PowerM® controller with Windows® Embedded Standard 7
    Client Operating System Support    Océ print driver for Windows® 7 (32 & 64-bit)/Windows Vista® (32 & 64-bit)/Windows XP®/Windows Server 2003®/ Windows Terminal Server®, Citrix® Metaframe and Presentation Server Adobe® Postscript® 3™ driver for Windows XP® and Server 2003®, Mac® OS v9, OSX (only Adobe® Postscript® 3/ PDF driver supported)
    Processor    Intel Celeron T3100 @1.90GHz
    Memory    4 gb DDR2
    Hard Disk    500 gb
    Interface    Ethernet 100 Mbits/s, 1 Gbit/s
    Page Description Language    TIFF, JPEG, HP-GL, HP-GL/2, DWF, Calcomp 906/907/951, CALS, NIRS, NIFF, ASCII, C4
    Security    E-shredding, IPSec, HTTPS, extended security protection for administrator, audit logging
    Options    Adobe PostScript 3/PDF file interpreter
    Cloud    WebDAV

    Scanner
    Description    Contact Image Sensor (CIS) with Océ Color Image Logic™ technology
    Scan Resolution    600 × 600 dpi
    Scan Speed    Copying: Up to 31.8 ft./min. (9.7 m/min.) Black & white scanning: Up to 47.9 ft./min. (14.6 m/min.) Color scanning: Up to 15.7 ft./min. (4.8 m/min.)
    Scan Format    TIFF, PDF, PDF/A, JPEG, CALS, multi-page PDF, multi-page PDF/A and multi-page TIFF
    Scan Destination    Local USB flash drive, FTP, SMB, Controller, mobile device via Océ Mobile WebTools
    Original Width    8.2" - 36" (208 - 914 mm)
    Original Length    8.2" - 52.5 ft. (208 mm - 16 m)
    Original Thickness    Maximum 0.03" (0.8 mm) non-rigid documents
    Zoom    Scale to standard format
    Custom: 10 - 1,000%
    Preset Modes    Lines & text, Lines & text draft, Folded lines & text, Photo, Colored, Dark original, Blueprint
    Size Scanner
    (W x D x H)    43" × 12" × 5.5" (1,097 × 308 × 140 mm)
    Weight Scanner    54 lbs. (24.5 kg)

    WORKFLOW
    Description    Concurrent print, copy and scan of single documents or sets
    Printer drivers    Microsoft® certified Windows® driver 2.0, Adobe® Postscript 3™ driver
    Job submission software    USB flash drive, Océ Mobile WebTools for iOS, Android, Symbian and BlackBerry®, Océ Publisher Mobile for iPad, Océ Publisher Express, Océ Publisher Select software
    Job management    Personalized Smart Inbox with history, Manage queue, Océ Express WebTools, Secure controller access, remote shutdown and restart
    Accounting    Option: Océ Account Center

    Options
    Hardware    Océ Scanner Express II, second roll unit, front original tray, Océ Estefold 2400 fanfold, Océ 4312 Estefold fullfold with Extended Stacker, Removable Hard Drive Kit with optional additional Hard Drive, and Rear Delivery Tray
    Software    Océ View Station, Océ Client Tools™ software, Adobe® Postscript 3/PDF file interpreter, Océ Repro Desk® Studio, Océ Repro Desk Web Client, Océ Repro Desk Professional
