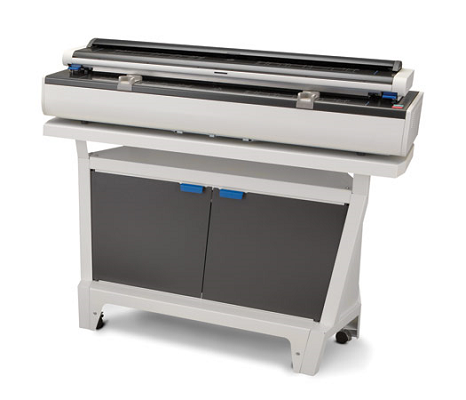

The KIP 2300

Overview

The KIP 2300 high productivity scanner sets a uniquely high standard for speed; quality and flexibility in a digital image capture system.

Best in class productivity is achieved via new KIP Tru•Speed Technology for high speed data processing with no delays. Outstanding image quality is delivered through the innovative use of bright white LED light sources for illumination and 600 x 600 dpi image capture resolution.

The KIP 2300 monochrome & color scanner provides demanding users with the highest image quality, versatility and productivity.

Direct connection support for inkjets

Preset scan modes – standard or production

White LED original illumination system

Mono scan speeds up to 60 ft. /18 m. per minute!

Color scan speeds up to 30 ft. / 9 m. per minute!

Specs

General

Scanner Type C.C.D. with KIP Tru•Speed Technology and KIP RTT Technology

Scan Resolution 600 x 600 dpi optical resolution

Scan Speed Up to 12 ips / 305 mm per second (B&W) Up to 6 ips / 152 mm per second (Color)

Scan Formats TIFF, Multipage TIFF, PDF, PDF-A, Multipage PDF, DWF, Multipage DWF, JPEG, CALS

Scan Destination Local USB (removable media), unlimited IPS mailboxes (local), unlimited FTP, unlimited SMB

Original Size Width/Length Originals up to 42" - 36" / 1,066 mm - 914 mm scan width

Original Thickness Up to 0.6" / 16 mm automatic thickness detection

Original Face Up/Face Down Both - dual original feed tables

Interface USB 2.0, KIP Tru•Speed Technology (2.3 GB per second data transfer)

Dimensions 55” (w) x 21” (d) x 11” (h) / 1,399 mm (w), 480 mm (d), 310 mm (h)

Weight 160 lb. / 73 kg

Electrical 100-240 V AC 50/60 Hz

Power Consumption <120 W
