The KIP 7970

Overview

Smart Solutions - Superior Productivity

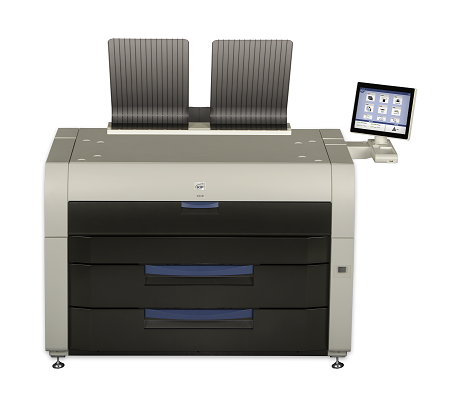

The KIP 7970 System features an innovative top stacking design that fits where you need it - in tight spaces or against a wall, delivering easy access to all system features and enhancing workflow productivity.
Color Multi-Touch Controls
13 ‘D’ / ‘A1’ Size Prints Per Minute
4 Integrated Media Rolls
Integrated Touchscreen with Advanced User Management
PC & Web Based Submission Tools
Smart, Multi-Touch Controls
All system functions are performed through its large, 12" display with vivid multi-touch color controls that instantly respond to your touch.

Specs

4 Roll Print System B&W wide format printer
Stacking Systems (optional) Integrated top stacking - up to 50 sheet capacity
Stacking Systems (optional) High capacity print tray, KIP 1200 stacker
Multifunction Scanning Systems (optional) KIP 720 CIS scanner
Production Scanning Systems (optional) KIP 2300 CCD scanner
Folding Systems (optional) KIPFold 1000, KIPFold 2000
General
Print Technology Electrophotography (LED) with organic photoconductor (OPC) and closed toner system
Speed 13 D / 7 A0 size pages per minute, FPOT (First Print Output Time) 12 seconds from deck 1
Warm Up Time Instant from standby, <6 minutes from start up
Configurations Printer or multifunction system (print/copy/scan) 4 rolls
Electrical Requirements 220-240 V, 50/60 Hz, 16 A
Power Consumption Sleep: <14 W Printing: 2.0 kW
Dimensions 67” (w) x 29” (d) x 59” (h) / 1702 mm (w) x 725 mm (d) x 1510 mm (h)
Weight 860 lbs. / 390 kg
Printer
Print Resolution 600 x 2400 dpi
Paper Capacity 6000 sq. ft. / 558 sq. m, 4 rolls
Output Sizes Width 11” - 36” / 297 mm - 914 mm
Output Sizes Length Length: 20’ / 6 m (standard), 79’ / 24 m (optional)
Paper Weight Bond-plain 18-24 lb. / 64-90 gsm,vellum-translucent-tracing 18-20 lb./ 80 gsm, film 3.5-4 mil / 75 gsm
Media Type Bond-plain, vellum-translucent-tracing, film (compatible with recycled & colored bond)
Controller
Controller Type KIP System K Controller with Windows 7 Embedded
Memory 2 GB DDR3 standard - upgradable to 4 GB
Compatible File Formats PDF, PDF-A, DWF, HPGL 1/2, HP-RTL, Calcomp 906/907, CALS Group 4, TIFF Group 4, PCX, CIT/TG4,
Uncompressed, Grayscale TIFF, TIFF Packbits, PNG, JPEG
Weight 860 lb. / 390 kg
Dimensions 67” (w) x 29” (d) x 54” (h) / 1,702 mm (w) x 725 mm (d) x 1,377 mm (h) with front delivery tray
Electrical (Dedicated) 220 V - 240 V, 50/60 Hz, 16 amp
Electrical Receptacle Nema 6-20 R
Max. Power Consumption 2.1 kWh (printing), 1.1 kWh (standby)
Acoustic Noise < 65 db (printing), <55 db (standby)
Room Temperature 50-86°F (10-32°C)
Room Humidity 15-85% (non condensing)
