The KIP 7770

Overview

Exceptional Value - Infinite Possibilities

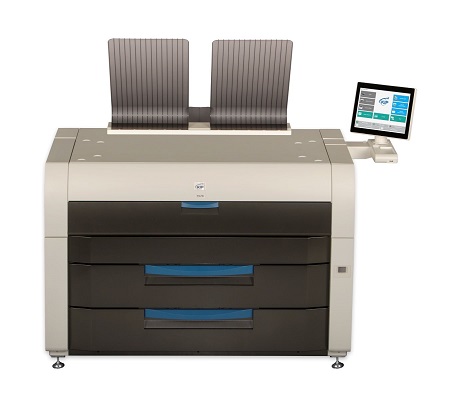

The KIP 7770 System features an innovative top stacking design that fits where you need it - in tight spaces or against a wall, delivering easy access to all system features and enhancing workflow productivity.
Color Multi-Touch Controls
9 ‘D’ / ‘A1’ Size Prints Per Minute
2 or 4 Integrated Media Rolls
Integrated Touchscreen with Advanced User Management
PC & Web Based Submission Tools
Smart, Multi-Touch Controls
All system functions are performed through its large, 12" display with vivid multi-touch color controls that instantly respond to your touch.

Specs

2 Roll Print System B&W wide format printer
4 Roll Print System B&W wide format printer
Stacking Systems (optional) Integrated top stacking - up to 50 sheet capacity
Stacking Systems (optional) High capacity print tray, KIP 1200 stacker
Multifunction Scanning Systems (optional) KIP 720 CIS scanner
Production Scanning Systems (optional) KIP 2300 CCD scanner
Folding Systems (optional) KIPFold 1000, KIPFold 2000
Media Capacity Upgrade (optional) Additional 2 roll media drawer to increase capacity from 2 rolls to 4 rolls
General
Print Technology Electrophotography (LED) with organic photoconductor (OPC) and closed toner system
Speed 9 D / 5 A0 size pages per minute, FPOT (First Print Output Time) 18 seconds D / A1 size page
Warm Up Time Instant from standby, <4 minutes from start up
Configurations Printer or multifunction system (print/copy/scan) 2 or 4 rolls
Roll Options 2 or 4 rolls - 11” - 36” / 297 mm - 914 mm roll width
Electrical Requirements 220-240 V, 50/60 Hz, 16 A
Power Consumption Sleep: <14 W Printing: 2.0 kW
Dimensions 67” (w) x 29” (d) x 59” (h) / 1702 mm (w) x 725 mm (d) x 1510 mm (h) with front delivery tray
Weight 2 Roll: 734 lb. / 333 kg 4 Roll: 827 lb. / 375 kg
Printer
Print Resolution 600 x 2400 dpi
Paper Capacity 3000/6000 sq. ft. / 297/558 sq. m, max 2/4 rolls
Output Sizes Width 11” - 36” / 297 mm - 914 mm
Output Sizes Length Length: 20’ / 6 m (standard), 79’ / 24 m (optional)
Paper Weight Bond-Plain 18-24 lb. / 64-90 gsm,vellum-translucent-tracing 18-20 lb. / 80 gsm, film 3.5-4 mil / 75 micron
Media Type Bond-plain, vellum-translucent-tracing, film (compatible with recycled & colored bond)
Controller
Controller Type KIP System K Controller with Windows 7 Embedded
Memory 2 GB DDR3 standard - upgradeable to 4 GB
Compatible File Formats PDF, PDF-A, DWF, HPGL 1/2, HP-RTL, Calcomp 906/907, CALS Group 4, TIFF Group 4, PCX, CIT/TG4,
Uncompressed, Grayscale TIFF, TIFF Packbits, PNG, JPEG
Weight 2 Roll: 734 lb. / 333 kg 4 Roll: 827 lb. / 375 kg
Dimensions 67” (w) x 29” (d) x 59” (h) / 1702 mm (w) x 725 mm (d) x 1510 mm (h) with front delivery tray
Electrical (Dedicated) 220 V - 240 V, 50/60 Hz, 16 amp
Electrical Receptacle Nema 6-20 R
Max. Power Consumption 2.1 kWh (printing), 1.1 kWh (standby)
Acoustic Noise < 65 db (printing), <55 db (standby)
Room Temperature 50-86°F (10-32°C)
Room Humidity 15-85% (non condensing)
