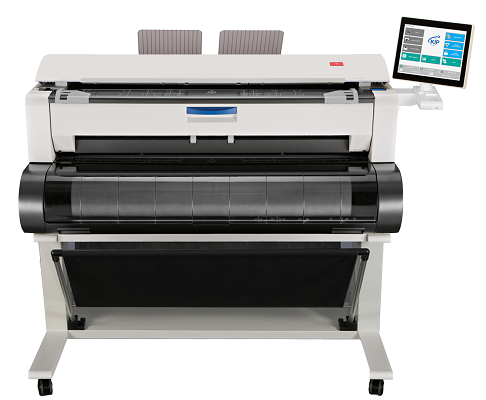

The KIP 770

Overview

Exceptional Multi-Function Value
The KIP 770 is the highest value wide format multi-function system in the world. It sets new standards for professional quality at a breakthrough value/performance level.
Color Multi-Touch Controls
3 ‘D’ / ‘A1’ Size Prints Per Minute
1 Integrated Media Roll
Integrated Touchscreen with Advanced User Management
PC & Web Based Submission Tools
Smart, Multi-Touch Controls
All system functions are performed through its large, 12" display with vivid multi-touch color controls that instantly respond to your touch.

Specs

1 Roll Copy, Print and Color Scan System
1 Roll Copy, Print and Color Scan System Plus Auto-Feeding Paper Tray
General
Description B&W wide format print/copy/scan with B&W/color scanner
Type Electrophotography (LED) with organic photoconductor (OPC) and closed toner system
Speed 3 D size pages per minute, FPOT (First Print Output Time) 41 seconds for one D size page
Warm Up Time <2.5 minutes from sleep
Options Auto-Feeding Paper Tray: Holds up to 30 sheets
Electrical Requirements 120 V, 50/60 Hz 15 A
Power Consumption Sleep: <8.2 W Printing: 1.5 kW - including scanner & controller
Dimensions 57” (w) x 33” (d) x 52” (h) / 1450 mm x 833 mm x 1330 mm
Weight 390 lb. / 177 kg with stand
Printer
Print Resolution 600 x 1800 dpi
Paper Capacity 1500 sq. ft. / 139 sq. m roll media, 60 sq. ft. / 5.5 sq. m sheet media
Output Sizes Width 11" to 36 " / 210 mm to 914 mm
Output Sizes Length 12 ft. / 3600 mm standard - 75 ft. / 24000 mm option (technician configured)
Paper Weight Bond 18-32 lb., vellum\translucent bond 18-20 lb., film 3.5-4 mil
Media Type Bond, vellum, translucent bond, film (compatible with recycled & colored bond)
Controller
Controller Type KIP System K Controller with Windows 7 Embedded
Memory 2GB DDR3 standard - upgradable to 4 GB
Hard Drive 240 GB minimum unlimited upgrade
File Formats DWF, PDF, PDF-A, HPGL 1/2, HP-RTL, Calcomp 906/907, CALS Group 4, TIFF Group 4, CIT/TG4,
Uncompressed, Grayscale TIFF, TIFF Packbits, PNG, JPEG
KIP 770 Scanner
Scanner Type Fully integrated CIS with KIP RTT Technology
Scan Resolution 600 x 600 dpi optical resolution
Scan Speed Up to 38.5 ft. per minute / 195 mm per second (B&W)
Up to 13 ft. per minute / 66 mm per second (color)
Scan Format TIFF, Multipage TIFF, PDF, PDF-A, Multipage PDF, DWF, Multipage DWF, JPEG, CALS
Scan Destination Local USB (removable media), unlimited mailboxes (local), unlimited FTP, unlimited SMB, unlimited cloud -
Google Drive/Dropbox/Box/OneDrive/SharePoint
Original Size Width 11" to 36 " / 210 mm to 914 mm
Original Thickness Up to 1.6 mm thick
Weight 390 lb. / 177 kg with stand
Dimensions 57” (w) x 33” (d) x 52” (h) / 1450 mm x 833 mm x 1330 mm
Electrical (Dedicated) 120 V, 50/60 Hz 15 A
Electrical Receptacle Nema 5-15 R
Power Consumption Sleep: <8.2 W Printing: 1.5 kW - Including scanner & controller
Acoustic Noise Idle: max. 51 db Printing: max. 60 db
Room Temperature 50-89.6°F (10-32°C)
Room Humidity 15-85% (non condensing)
Optional Paper Tray Add 20” / 508 mm to rear requirements
