Monochrome

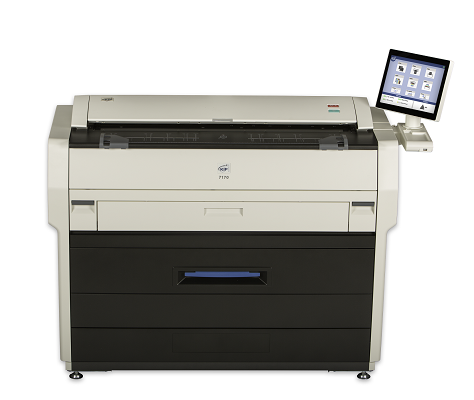

The KIP 7170

Overview

Ultimate - Multi-Touch Performance
The productivity of the KIP 7170 system is designed to satisfy the most demanding needs of decentralized users. The versatile KIP 7170 may also be expanded to provide multifunction convenience. KIP 7170 system software is ideal for decentralized environments and expandable to meet the need for centralized printing.
Color Multi-Touch Controls
6 ‘D’ / ‘A1’ Size Prints Per Minute
2 Integrated Media Rolls
Integrated Touchscreen with Advanced User Management
PC & Web Based Submission Tools
Smart, Multi-Touch Controls
All system functions are performed through its large, 12" display with vivid multi-touch color controls that instantly respond to your touch.

Specs

2 Roll Print/Copy/STF with Color STF B&W wide format printer with integrated scan system
Stacking Systems (standard) Integrated top stacking - up to 50 sheet capacity
Stacking Systems (optional) Rear print tray, print & original stacking system, KIP 1200 stacker
Folding Systems (optional) KIPFold 1000, KIPFold 2000
General
Print Technology Electrophotography (LED) with organic photoconductor (OPC) and closed toner system
Speed 6 D / 3.3 A0 size pages per minute, FPOT (First Print Output Time) 21 seconds D / A1 size page
Warm Up Time Instant from standby, <4.5 minutes from start up
Configurations Multifunction system (print/copy/scan) 2 rolls
Electrical Requirements 120 V +6% or -10%, 50/60 Hz, 15 Amps / 220 - 240 V, 50/60 Hz, 7 A
Power Consumption Sleep: <14 W Printing: 1.5 kW
Dimensions 63” (w) x 28” (d) x 59” (h) / 1590 mm (w) x 700 mm (d) x 1510 mm (h)
Weight 538 lb. / 244 kg
Printer
Print Resolution 600 x 2400 dpi
Paper Capacity 3000 sq. ft. / 297 sq. m roll media
Output Sizes Width 11” - 36” / 297 - 914 mm
Output Sizes Length Length: 20’ / 6 m (standard), 500’ / 152 m (optional)
Paper Weight Bond-Plain 18-24 lb. / 64-90 gsm, vellum-translucent-tracing 18-20 lb. / 80 gsm, film 3.5-4 mil / 75 micron
Media Type Bond-plain, vellum-translucent-tracing, film (compatible with recycled & colored bond)
Controller
Controller Type KIP System K Controller with Windows 7 Embedded
Memory 2 GB DDR3 standard - upgradable to 4 GB
Compatible File Formats PDF, PDF-A, DWF, HPGL 1/2, HP-RTL, Calcomp 906/907, CALS Group 4, TIFF Group 4, PCX, CIT/TG4,
Uncompressed, Grayscale TIFF, TIFF Packbits, PNG, JPEG
KIP 7170 Scanner
Scanner Type Fully Integrated - C.I.S. with KIP RTT Technology
Scan Resolution 600 x 600 dpi optical resolution
Scan Speed Up to 38.5 ft. per minute / 195 mm per second (B&W)
Up to 13 ft. per minute / 66 mm per second (Color)
Scan Format TIFF, Multipage TIFF, PDF, PDF-A, Multipage PDF, DWF, Multipage DWF, JPEG, CALS
Scan Destination Local USB (removable media), unlimited system mailboxes (local), unlimited FTP, unlimited SMB, unlimited cloud connect to OneDrive, Google
Drive or Dropbox, Box.com, Microsoft SharePoint & Microsoft Office 365 OnlineTM
Original Size Width 11" - 36" / 297 mm - 914 mm
Original Thickness Up to 1.6 mm thick
Weight 538 lb. / 244 kg
Dimensions 63” (w) x 28” (d) x 59” (h) / 1590 mm (w) x 700 mm (d) x 1510 mm (h)
Electrical (Dedicated) 120V +/- 10%, 50/60 Hz, 15 amp or higher
Electrical Receptacle Nema 5-15 R
Max. Power Consumption 1.44 kW
Acoustic Noise Idle: max. 50 db Printing: max. 57 db
Room Temperature 50-86°F (10-32°C)
Room Humidity 15-85% (non condensing)
