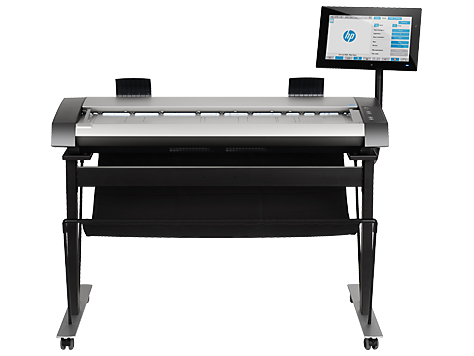

The Hp HD Pro

Overview

High-definition color scanning
Capture images with outstanding color accuracy using the high-speed, high-definition HP DesignJet HD Pro Scanner. Enhance images on the large touchscreen, and save documents to many file formats, including multipage PDFs. Scan to email, USB and other network locations.

Specs

HP DesignJet HD Pro Scanner specifications - G6H51A

Model size:
42 in
Functions:
Copy, scan
Speed specifications
Linear scan speed:
Up to 6 in/sec (color, 200 dpi); up to 13 in/sec (black-and-white, 200 dpi)
Memory specifications


Memory, standard:
2 GB
Hard disk:
Standard, 500 GB
Technical specifications


Scan resolution, optical:
1200 dpi
Enhanced scanning resolution:
9600 dpi
Scanner type:
Sheetfed
Scan size (flatbed), maximum:
42-in wide
Scan size flatbed (minimum):
6 x 4.5 in
Bit depth:
48-bit/16-bit
Paper handling


Finished output handling:
Straight-through scan paper path for sheet and cardboard originals, adjustable paper pressure for very thin media
Media types:
Non-abrasive paper, vellum, Mylar, sepia, blueprints, plastic, film, plastic laminate, foam board, cardboard, newspaper, tracing paper (no plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies)
Connectivity


Connectivity, standard:
Gigabit Ethernet (1000Base-T)
Hi-Speed USB 2.0 certified
Power and operating requirements


Power consumption:
90 watts (scanning); 80 watts (ready); < 3 watts (sleep)
Energy efficiency:
ENERGY STAR® qualified
Operating temperature range
41 to 104ºF
(5 to 40ºC )
Operating humidity range:
20 to 80% RH
Dimensions and weight


Minimum dimensions (W x D x H):
59 x 54 x 28 in
Weight:
157 lb
What's included


Warranty:
One-year limited hardware warranty
What's in the box:
HP Designjet HD Pro Scanner; stand; touchscreen (panel PC); quick reference guide; setup poster; copy/scan software; documentation software; Ethernet cables (x2); power cords
