The imagePROGRAF 830 MFP

Overview

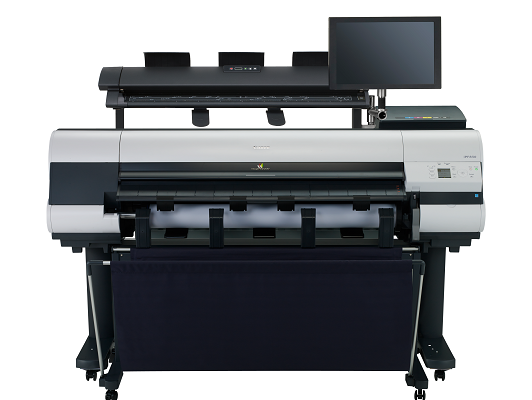

The Canon imagePROGRAF iPF830 MFP M40 44" large format imaging system is designed to meet the speed and precision requirements for AEC, CAD, MCAD and ECAD, with outstanding ease-of-operation to handle all-purpose, office projects. The iPF830 MFP M40 provides a fast and effective system for copying, archiving and distributing maps, drawings, renderings, site and facilities management plans, design and layout proofs, posters and more.

This Multi-Function Product's advanced M40 scanner adds versatility to the product capabilities with the ability to scan documents up to 2mm thick. The scanner has the ability to scan documents up to 315" in length as a PDF or JPEG file, and up to 590" in length as a TIFF file. The SmartWorks MFP software simplifies the entire Scan-to-Print, File, and Share process for users of all experience levels. The iPF830 MFP M40 also offers Canon's Direct Print & Share software1, a cloud-portal software solution that enables the viewing, sharing and printing of files from virtually anywhere in the world, a Shortcut Print button for drag and drop printing through hot folder technology, and is compatible with almost any cloud server that's WebDAV compliant. The solution is also equipped for mobile printing through use of the imagePROGRAF Print Utility app for iPad®, available as a free download on the App Store℠2.

Specs

Printer Type    5-Color 44-inch Printer

Scanner Type
Contact Image Sensor (CIS) technology
Scan Accuracy: +/- 0.1%
Speed: 13 ips monochrome, 3 ips color
Nozzle Pitch    1,200 dpi
Non-firing nozzle detection and compensation

Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
OS Compatibility    Windows® (XP 32bit/Vista/7/8/8.1)
Macintosh® (OSX 10.6.8-10.10)
Standard Interfaces    USB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size    4 picoliter
Ink Capacity    330ml , 700ml per color2
Ink Droplet Size    Dye/Pigment Reactive Ink
Color Set    Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black
Hard Drive    320GB
Paper Sizes    Scanner:
Width: 42 inch document width (40 inch image width)
Length 315" (JPG or PDF), 590" (TIFF)
Media Width    Cut Sheet - 8" - 44"
Roll Feed - 10" - 44"
Media Thickness    0.07-0.8mm (2.8-31.4mil)

Scanner: 0.079in (2mm)
Maximum Roll Print Length    Roll Feed - 59' 3
Cut Sheet - 63"
Maximum Media Roll Diameter    5.9"
Borderless Printing Width    10", 14", 17", 24", 36", 42"
Paper Feed Method    Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front output
Languages    GARO (Canon Proprietary), HP-GL/2, HP-RTL
Noise Level Approx    Operation: 52 dB (A)
Standby: 35 dB (A) or less
Acoustic Power: Approx. 6.8 Bels
Physical Dimensions    75"(W)x 51"(D)x 45"(H)

Box Dimensions
84"(W)x62"(D)x46"(H)
Weight    Approximately 380lbs

Box Weight
Approximately 564lbs
Power Source    AC-100-240V (50-60Hz)
Power Consumption    Maximum: 190W or less
Standby 5W or less
Power Off: .5W or less (Compliant with Executive Order)
Operating Environment    Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items    Print Head: PF-04
Maintenance Cartridge: MC-10, MC-09
Ink Tanks:
PFI-307 (330ml: C, M, Y, BK, MBK)
PFI-707 (700ml: C, M, Y, BK, MBK)
Software Included    Scanner: SmartWorks MFP, Direct Print & Share
Standard Interface: USB 3.0 and USB 2.0 High-Speed
Computer: OEM
Operating System: Windows 7
Monitor: Flat Panel Touch-Screen Display
Direct Print Built In Card Reader Functions
Software    Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility4, PosterArtist Lite (PC Only), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD
Print Resolution    2,400 x 1,200 dpi (Max)

Scanner:
Optical Resolutions: 1200dpi (Adjustable from 100 dpi to 2,400 dpi)
Max. Resolutions: 9600dpi interpolated
