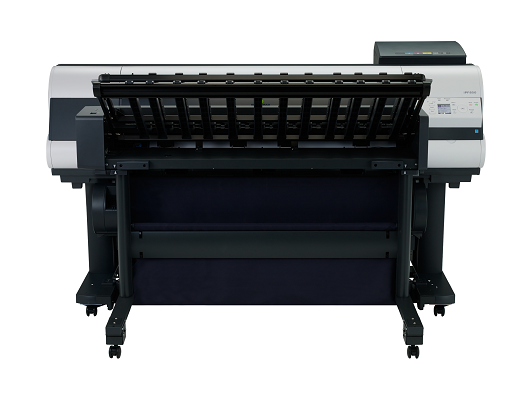

The Canon imagePROGRAF 850

Overview

A 44-inch wide powerhouse printing system designed to enhance productivity for medium to large workgroups, with dual media rolls, high-capacity stacker and high speed throughput, the imagePROGRAF iPF850 printer joins the award winning production printing line. With incredible line accuracy, a 320GB hard drive, excellent media handling, and support for HP-GL/2 and HP RTL files, the iPF850 printer is an easy-to-use high production printing solution for any professional with a need for producing intricately detailed full-color renderings, technical drawings, GIS maps and other large-format output.

Specs


Printer Type    5-Color 44-inch Printer
Number of Nozzles    Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch    1,200 dpi
Non-firing nozzle detection and compensation
OS Compatibility    Windows® (XP 32bit/Vista/7/8/8.1)
Macintosh® (OSX 10.6.8 - 10.10)
Standard Interfaces    USB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size    4 picoliter
Ink Capacity    330ml, 700ml per color2
Ink Droplet Size    Dye/Pigment Reactive Ink
Color Set    Dye: Cyan, Magenta, Yellow, Black
Pigment. Matte Black
Hard Drive    320 GB
Media Width    Cut Sheet - 8"- 44"
Roll Feed -10"-44"
Media Thickness    0.07-0.8mm
Maximum Roll Print Length    Roll Feed - 59'3
Cut Sheet -63"
Maximum Media Roll Diameter    5.9" or less
Borderless Printing Width    10",14", 17", 24", 36", 42" (N/A when stacker is in use)
Paper Feed Method    Roll Feed: Dual Roll, Front loading, Front output
Cut Sheet: One sheet, Front loading, Front output
Languages    Language: GARO (Canon Proprietary) HP-GL/2, HP-RTL
Noise Level Approx    Operation: 60 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: Approx. 7.5 Bels or less
Physical Dimensions    75"(W)x 52"(D)x 45"(H)
Weight    Approximately 470 lbs
Power Source    AC-100-240V (50-60Hz)
Power Consumption    Maximum: 200W or less Standby 5W or less Power Off: .5W or less (Compliant with Executive Order)
Operating Environment    5.9" or less Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
Direct Print Built In Card Reader Functions
Software    Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility4, PosterArtist Lite (PC Only), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD
Print Resolution    2,400 x 1,200 dpi (Max)
