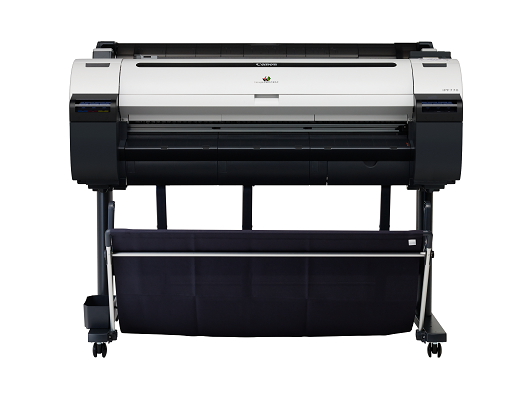

The Canon imagePROGRAF 770

Overview

The Canon imagePROGRAF iPF770 36-inch large format printer is an affordable model for entry-level users. The iPF770 is the printer for your poster and signage needs, the optimal color profile and latest magenta ink will create the vivid and impactful image you need. Canon understands speed is important, that is why the iPF770 printer is capable of producing an A1 (23.39” x33.11”) print in 25 seconds6 using Economy Mode! The included Sub-ink tank system allows you to use all of the ink in the tank before replacing it, as while as replacing an empty ink tanks on-the-fly without stopping a job mid-print and sacrifice print quality.

Specs


Printer Type    5-Color 36-inch Printer
Number of Nozzles    Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch    1,200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to)    2,400 x 1,200 dpi (Max)
OS Compatibility    Windows® (XP 32bit/Vista/7/8)
Macintosh® (OSX 10.6.8-10.9X)
Standard Interfaces    USB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size    4 picoliter
Ink Capacity    130ml per color2
Ink Droplet Size    Dye/Pigment Reactive Ink
Color Set    Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black
Buffer Ram    256MB
Media Width    Cut Sheet: 8"- 36" (203.2mm - 914mm)
Roll Feed: 10" - 36" (254mm - 914mm)
Media Thickness    0.07-0.8mm (2.8-31.4mil)
Maximum Roll Print Length    Roll Feed: 59' (18 meters) 3
Cut Sheet: 63" (1.6 meters)
Maximum Media Roll Diameter    5.9" (150mm)
Borderless Printing Width    10", B4, A3, 14", A2, 17", B2 (20.28"/515 mm), A1 (23.38"/594mm), 24", A0 (33.11"/841mm), B1 (728 mm), 36" (914 mm)
Paper Feed Method    Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front output
Languages    Language: GARO (Canon Proprietary), HP-GL/2, HP RTL
Noise Level Approx    Operation: 48 dB (A)
Standby: 35 dB (A) or less
Acoustic Power: Approx. 6.5 Bels
Physical Dimensions    42" (H) x 51" (W) x 34" (D) (When basket is open)
42" (H) x 51" (W) x 28" (D) (When basket is closed)
Box Dimensions/Weight : 30" (H) x 56" (W) x 43" (D)
Approximately 238lb.
Weight    Approximately 139lb. with stand
Power Source    AC-100-240V (50-60Hz)
Power Consumption    Maximum: 140W or less
Standby 5W or less
Power Off: .5W or less (Compliant with Executive Order)
Operating Environment    Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items    Print Head: PF-04
Maintenance Cartridge: MC-10
Ink Tanks: PFI-107 (130ml: C, M, Y, BK, MBK)
Software Included    Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility^, PosterArtist Lite (PC Only), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD
