The Canon imagePROGRAF 680

Overview

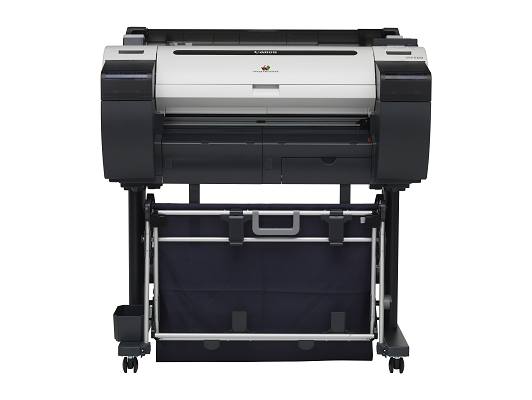

The Canon imagePROGRAF iPF680 24-inch large format printer builds on Canon’s award winning line of 5-color printers, and provides enhancements in both hardware, and software capabilities. The iPF680 device is capable of producing an Arch D (24” x 36”) print in up to 25 seconds using Economy mode! The printer has the capability of accommodating 300ml ink tanks, geared towards lowering the cost per print. The included Sub-ink tank system allows for users to use all of the ink in the tank before replacing, while also replacing the empty ink tanks on-the-fly without having to stop a job mid-print and sacrifice print quality.

Specs


Printer Type    5-Color 24-inch Printer
Number of Nozzles    Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch    1,200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to)    2,400 x 1,200 dpi (Max)
OS Compatibility    Windows® (XP/Vista/7/8)
Macintosh® (OSX 10.6.8-10.9X)
Standard Interfaces    USB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size    4 picoliter
Ink Capacity    130ml or 300ml per color4
Ink Droplet Size    Dye/Pigment Reactive Ink
Color Set    Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black
Buffer Ram    256MB
Media Width    Cut Sheet - 8"- 24" (203.2mm - 610mm)
Roll Feed - 10" - 24" (254mm - 610mm)
Media Thickness    0.07-0.8mm (2.8-31.4mil)
Maximum Roll Print Length    Roll Feed - 59' (18 meters) 5
Cut Sheet - 63" (1.6 meters)
Maximum Media Roll Diameter    5.9" (150mm)
Borderless Printing Width    10", B4, A3, 14", A2, 17", B2 (20.28"/515 mm), A1 (23.38"/594mm), 24"
Paper Feed Method    Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front output
Languages    GARO (Canon Proprietary), HP-GL/2, HP RTL
Noise Level Approx    Operation: 48 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: Approx. 6.5 Bels
Physical Dimensions    42" (H) x 39" (W) x 35" (D) (When basket is open)
42" (H) x 39" (W) x 43" (D) (When basket is extended for flatbed stacking)
Box Dimensions/ Weight: 45" (H) x 44" (W) x 35" (D)
Approximately 205 lbs
Weight    Approximately 125lbs. with stand
Power Source    AC-100-240V (50-60Hz)
Power Consumption    Maximum: 140W or less
Standby 5W or less
Power Off: .5W or less (Compliant with Executive Order)
Operating Environment    Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation)
User-replaceable items    Print Head: PF-04
Maintenance Cartridge: MC-10
Ink Tanks: PFI-107 (130ml: C, M, Y, BK, MBK), PFI-207 (300ml: C, M, Y, BK, MBK)
Software Included    Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility2, PosterArtist Lite (PC Only), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD
