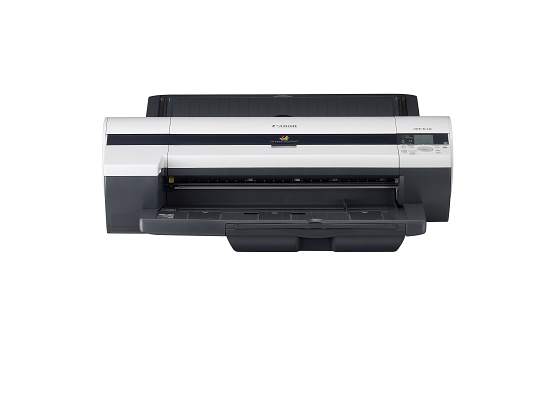

The Canon imagePROGRAF 610

Overview

The Canon imagePROGRAF iPF610 24" large format printer produces vibrant full-bleed posters, clear text documents and crisp line drawings easily and quickly. Its 24" output will impress clients and colleagues by communicating visual layouts with eye-catching color and exacting details. The imagePROGRAF iPF610 features a Reactive Ink system consisting of four highly colorfast dye inks - Cyan, Magenta, Yellow and Black - plus two channels of pigment-based matte black.

Specs


Printer Type    5-Color 24-inch Printer
Number of Nozzles    Total: 30,720
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch    1,200 dpi
Nozzle Recovery System    Non-firing nozzle detection and compensation
Print Resolution (Up to)    2,400 x 1,200 dpi (Max)
OS Compatibility    Windows®(2000/XP/Vista 32/64bit)
MAC(OS9,OS10)1
Standard Interfaces    USB 2.0 High-Speed
10/100 Base-T/TX
Optional: IEEE 1394 (Firewire®)
Ink Droplet Size    4 picoliter
Ink Capacity    130ml per color2
Ink Droplet Size    Dye/Pigment Reactive Ink
Color Set    Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black (two channels)
Buffer Ram    256 MB
Hard Drive    N/A
Media Width    Cut Sheet and Roll: 8" - 24"
Cassette: 8" - 17"
Media Thickness    Top Loading Manual Feed: 0.07 - 0.8mm (2.8 - 31.4mil)
Front Loading Manual Feed: 0.5 - 1.5mm (19.6 - 59.0mil)
Roll: 0.08 - 0.8mm (2.8 - 31.4mil)
Cassette: 0.08 - 0.3mm (3.2 - 11.8mil)
Maximum Roll Print Length    59 Feet (18 meters)3
Maximum Media Roll Diameter    5.9" (150mm)
Borderless Printing Width    10" (254 mm), B4 (257 mm), A3+ (329 mm), 14" (356 mm), 16" (407 mm), A2 (420 mm), A2+/17" (432 mm), B2 (515 mm), A1 (594 mm), 24" (610 mm)
Paper Feed Method    Roll Feed: One Roll, front output
Top Loading Manual Feed: One sheet, front output
Front Loading Manual Feed: One sheet, front output
Cassette: Up to 250 Sheets (Letter, Plain Paper), front output
Languages    Language: GARO (Canon Proprietary)
Noise Level Approx    Operation: 52 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 6.6 Bels
Physical Dimensions    38.9" (H) x 39.3" (W) x 39" (D)
Weight    Approximately 149.9 lbs with stand
Power Source    AC-100-120V (50-60Hz)
Power Consumption    Maximum: 100W or less
Standby 6W or less
Power Off: 1W or less (Compliant with Executive Order)
Operating Environment    Temperature: 59°-86° F (15° - 30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items    Print Head (PF-03), Maintenance Cartridge (MC-16)
Software Included    Canon Printer Driver, Digital Photo Front-Access, Printer Driver Extra Kit (Free Layout, imageRUNNER Linking Function), HDI Driver for AutoCAD4
