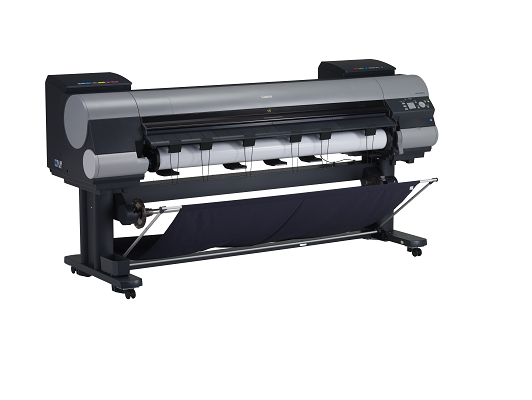

The Canon imagePROGRAF 9400S

Overview

An extremely versatile solution, the 60" imagePROGRAF iPF9400S printer is ideal for those who need quality large format output and maximum productivity. Built for the photography, proofing and production markets, the iPF9400S printer delivers high quality imaging while increasing overall productivity. An incredibly large color spectrum is produced by the 8-Color LUCIA EX pigment ink set, which also provides better scratch resistance and smoother gradations. The new Multi-sensor included with this printer provides improved color density detection and allows for a full calibration to be completed within 15 minutes, with the ability to use non-Canon branded media. Borderless printing of up to 60” is now possible with this printer and the new economy print mode allows for quality printing with limited ink usage. In highest print mode, the order of ink application and layering is optimized to maintain the highest print quality with fewer passes, making this mode twice as fast compared to previous models. Ideal for production grade printing environments, the iPF9400S is up to 40% faster than the 12-Color line of imagePROGRAF Graphic Arts printers. Achieve maximum productivity with large 330ml or 700ml ink tanks and a unique sub-ink tank system for replacing ink on-the-fly without stopping the printer. The iPF9400S is also equipped with a large 250GB hard drive, geared to increase productivity in high volume printing and streamlined workflows, while allowing for faster processing of large files as well as the ability to reprint jobs directly from the printer.

Specs


Printer Type    8-Color 60-inch Printer
Number of Nozzles    Total: 20,480
All Colors: 2,560 nozzles each
Nozzle Pitch    1,200 dpi
Nozzle Recovery System    Non-firing nozzle detection and compensation
Print Resolution (Up to)    2,400 x 1,200 dpi (Max)
OS Compatibility    Windows® (XP/Vista 32/64bit/Windows 7 32/64bit)
Macintosh® (OSX)
Standard Interfaces    USB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size    4 picoliter
Ink Capacity    330ml per color2 (Optional 700ml)
Ink Droplet Size    LUCIA EX Ink (Pigment based)
Color Set    Cyan, Photo Cyan, Magenta, Photo Magenta, Yellow, Black, Matte Black, Gray
Buffer Ram    640 MB
Hard Drive    250 GB
Media Width    Cut Sheet: 8" - 60"

Roll: 10" - 60"
Media Thickness    Front Loading Manual Feed: 0.07 - 0.8mm (2.8 - 31.4mil)

Roll: 0.07 - 0.8mm (2.8 - 31.4mil)
Maximum Roll Print Length    59 Feet (18 meters)2
Maximum Media Roll Diameter    5.9" (150mm)
Borderless Printing Width    515mm (JIS B2), 1,030mm (JIS B0), 594mm (ISO A1), 841mm (ISO A0), 10", 14", 17", 24", 36", 42", 44", 50", 60"
Paper Feed Method    Roll Feed: One Roll, front output

Front Loading Manual Feed: One sheet, front output
Languages    GARO (Canon Proprietary)
Noise Level Approx    Operation: 68 dB (A) or less

Standby: 35 dB (A) or less
Physical Dimensions    45" (H) x 90.5" (W) x 30.2" (D)
Weight    Approximately 355 lbs. with stand
Power Source    AC-100-240V (50-60Hz)
Power Consumption    Maximum: 190W or less

Standby: 6W or less

Power Off: .5W or less (Compliant with Executive Order)
Operating Environment    Temperature: 59°-86° F (15°-30° C)

Relative Humidity - 10-80% (No Condensation)
User-replaceable items    Print Head (PF-05)

Maintenance Cartridge (MC-08)

Durable Rotary Media Cutter (CT-06)

Ink Tanks (PFI-306, PFI-706)
Software Included    Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Print Plug-in for Adobe Photoshop, Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Accounting Manager
