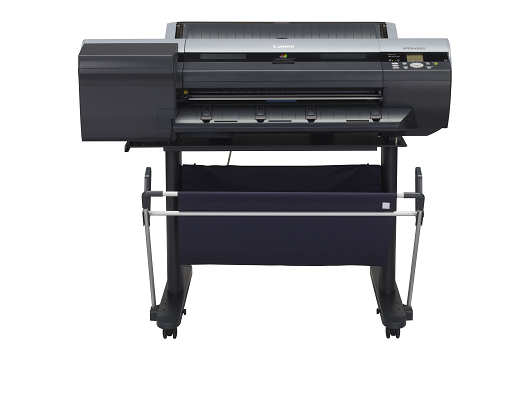

The Canon imagePROGRAF 6400S

Overview

The imagePROGRAF iPF6400S, 24-inch large format printer was designed for professionals in the commercial photography, signage display, reprographic and proofing markets that seek the highest possible standards for quality-control and image reproduction, while maximizing productivity. A large color spectrum is produced by the 8-Color LUCIA EX pigment ink set, which also provides scratch resistance and smoother gradations. The enhanced Multi-sensor allows for the printer to calibrate back to factory settings, and is included with this printer to help provide improved color density detection. A Color Calibration Management System allows for color calibration targets to be created using the iPF6400S printer with optional spectrophotometer and shared across all new iPFX400S 8-Color printers, while the included software allows for all printers on the network to be monitored from one central location. The printer supports ink tank sizes of 130ml and for the first time, 300ml, and the new Sub-ink tank system keeps some ink in reserve to allow for tanks to be changed without interrupting a print. The iPF6400S printer is also equipped with a 250GB hard drive, geared to help increase productivity in high volume printing and streamlined workflows, while allowing for fast processing of large files as well as the ability to reprint jobs directly from the printer.

Specs


Printer Type    8-Color 24-inch Printer
Number of Nozzles    Total: 30,720
C, PC, PM, GY: 5,120 nozzles each
BK, MBK, Y, M: 2,560 nozzles each
Nozzle Pitch    1,200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to)    2,400 x 1,200 dpi (Max)
OS Compatibility    Windows® (XP/Vista/7/8), Macintosh® (OSX)
Standard Interfaces    USB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size    4 picoliter
Ink Capacity    130 and 300ml per color available2
Ink Droplet Size    LUCIA EX Ink (Pigment based)
Color Set    Cyan, Photo Cyan, Magenta, Photo Magenta, Yellow, Black, Matte Black, Gray
Buffer Ram    250 GB / 250 MB
Media Width    Cut Sheet and Roll: 8" - 24"
Media Thickness    Top Loading Manual Feed: 0.07 - 0.8mm (3.2 - 31.4mil)
Front Loading Manual Feed: 0.5 - 1.5mm (19.6 - 59.0mil)
Roll: 0.07 - 0.8mm (3.2 - 31.4mil)
Maximum Roll Print Length    59 Feet (18 meters)3
Maximum Media Roll Diameter    5.9" (150mm)
Borderless Printing Width    10" (254 mm), B4 (257 mm), 14" (356 mm), 16" (407 mm), A2 (420 mm), A2+/17" (432 mm), B2 (515 mm), A1 (594 mm), 24" (610 mm)
Paper Feed Method    Roll Feed: One Roll, front output
Top Loading Manual Feed: One sheet, front output
Front Loading Manual Feed: One sheet, front output
Languages    GARO (Canon Proprietary)
Noise Level Approx    Operation: 47 dB (A) or less
Acoustic Power: Approx. 6.4 Bels or less
Physical Dimensions    39.4" (H) x 48.3" (W) x 29.6" (D)
39.4" (H) x 48.3" (W) x 34.4" (D) (with optional SU-21 Spectrophotometer attached)
Weight    Approximately 154 lbs. with stand
Approximately 200 lbs. with optional SU-21 Spectrophotometer attached
Power Source    AC-100-240V (50-60Hz)
Power Consumption    Maximum: 100W or less
Standby 5W or less
Power Off: .5W or less (Compliant with Executive Order)
Operating Environment    Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items    Print Head (PF-05), Maintenance Cartridge (MC-16), Ink Tanks (PFI-106/PFI-206)
Software Included    Canon Printer Driver, Print Plug-in for Adobe Photoshop. Print Plug-in for Digital Photo Professional, PosterArtist Lite (PC Only), Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Accounting Manager, Gallery Wrap Feature, Color Calibration Management Console, Printer Driver Optimization Module for AutoCAD, Direct Print & Share
Optional SU-21 Spectrophotometer
Model: X-Rite SU-21
Color Measurement Width: 480mm
Max. Media Thickness: 0.50mm
XRGA Compliant: Yes
ISO 13655 Compliant: Yes
User Switchable UV Filter: Yes
White/Black Backing: Included on one strip
Support for Third Party RIPS: Most leading Third Party RIPS
